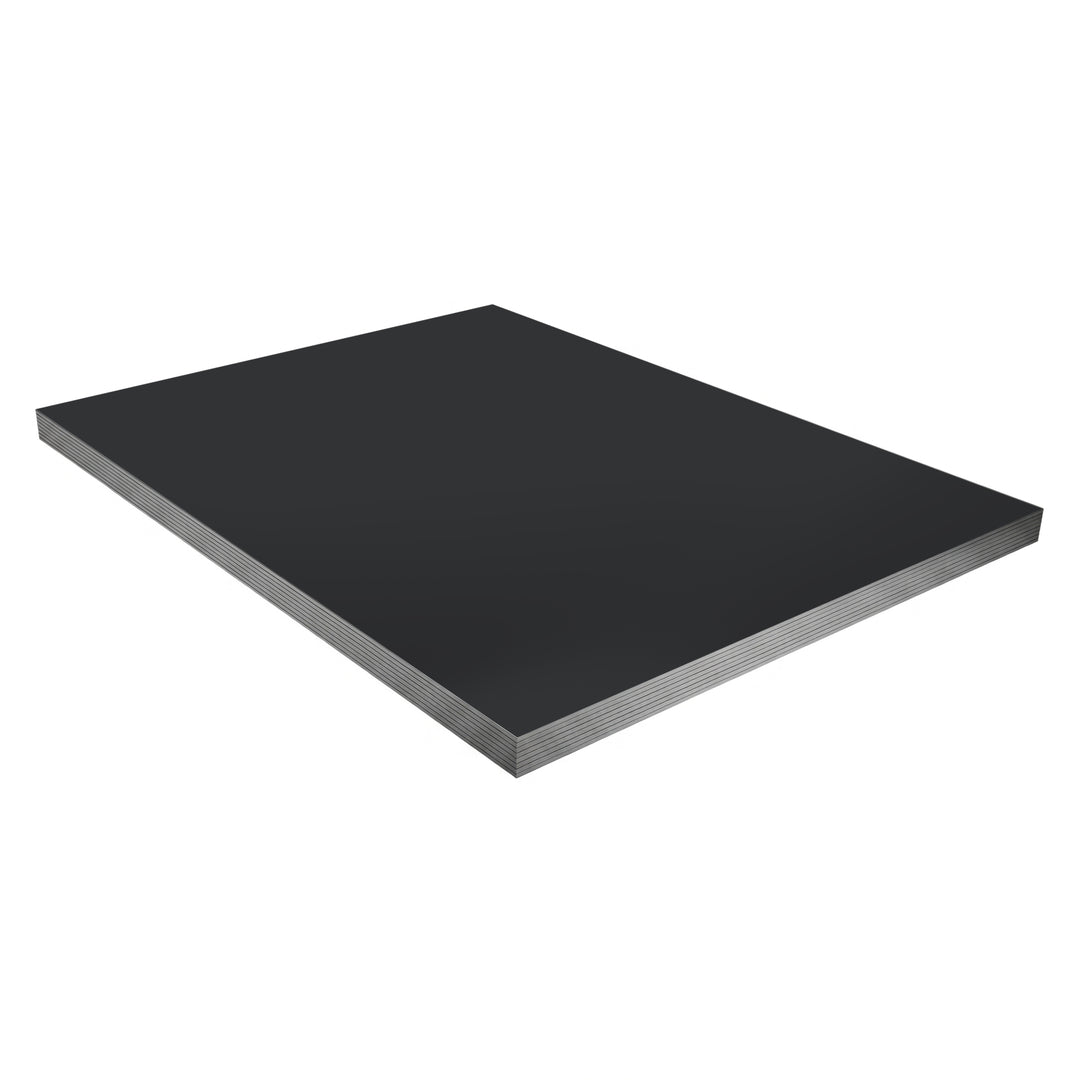

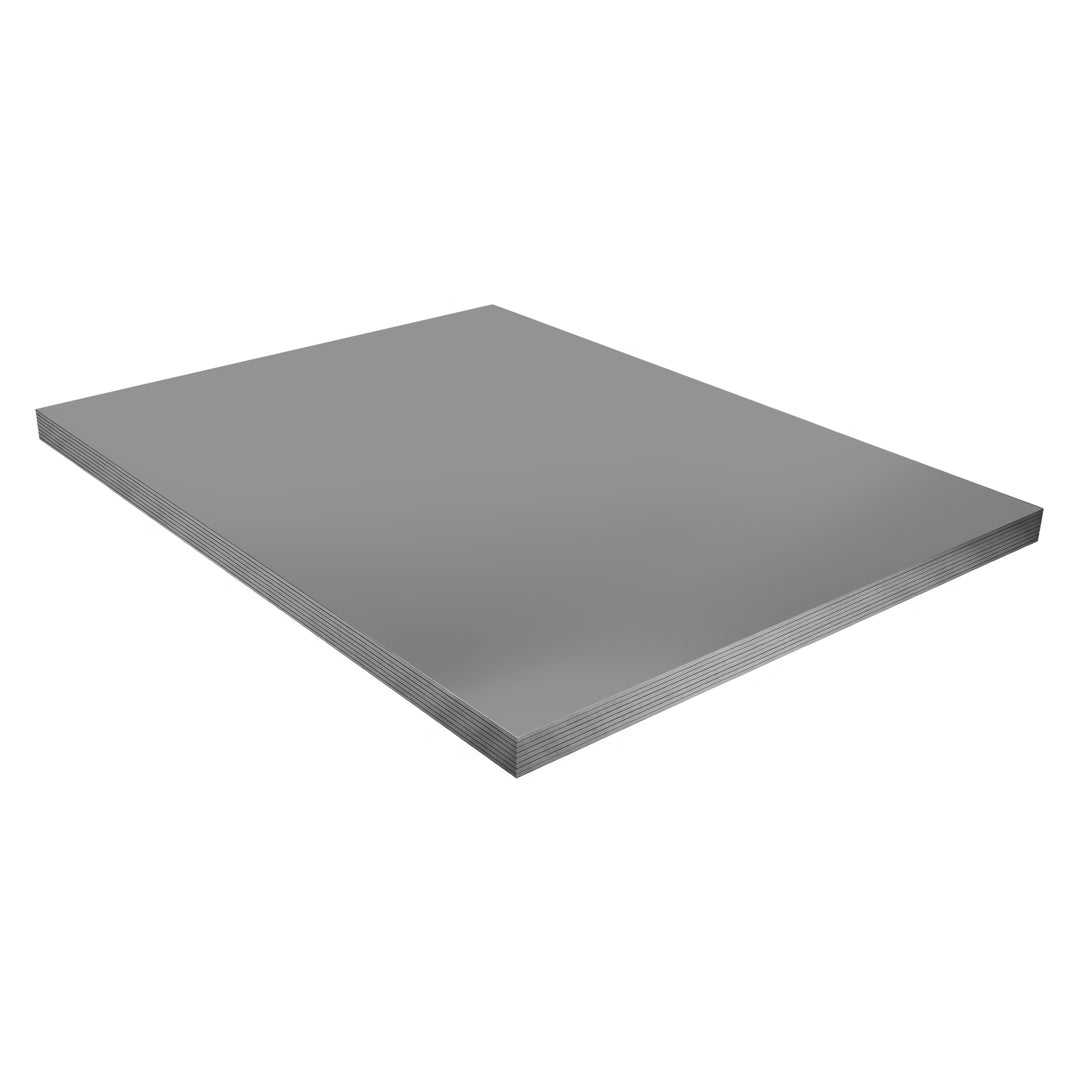

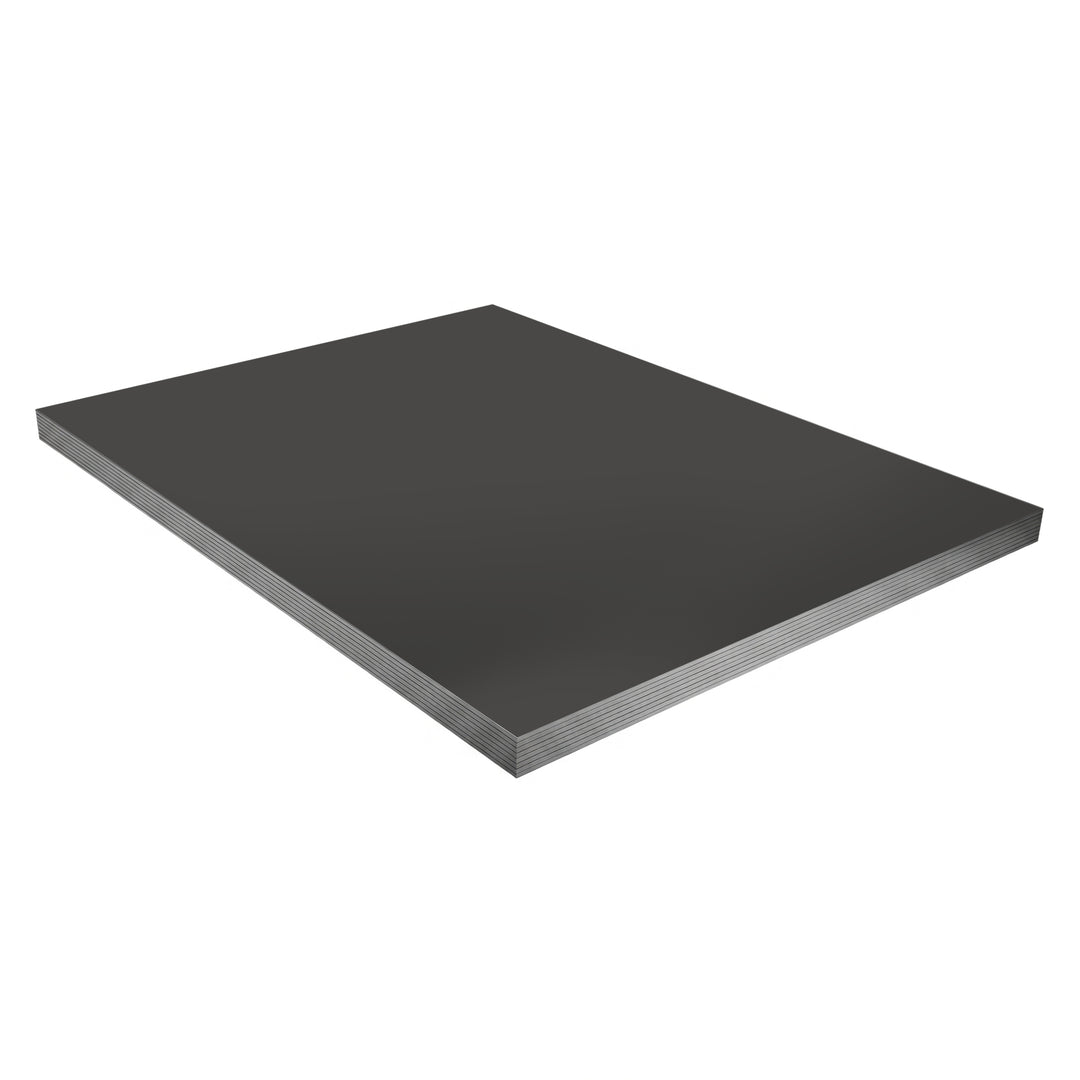

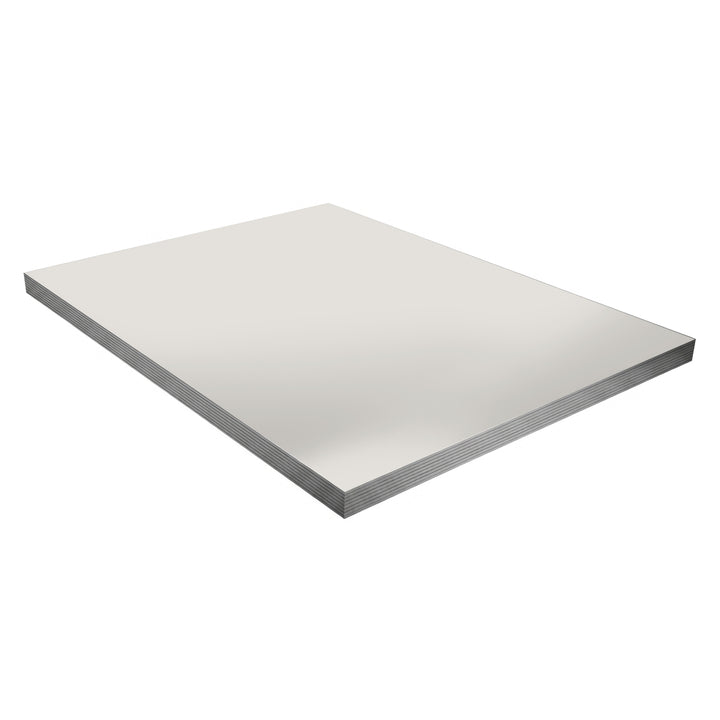

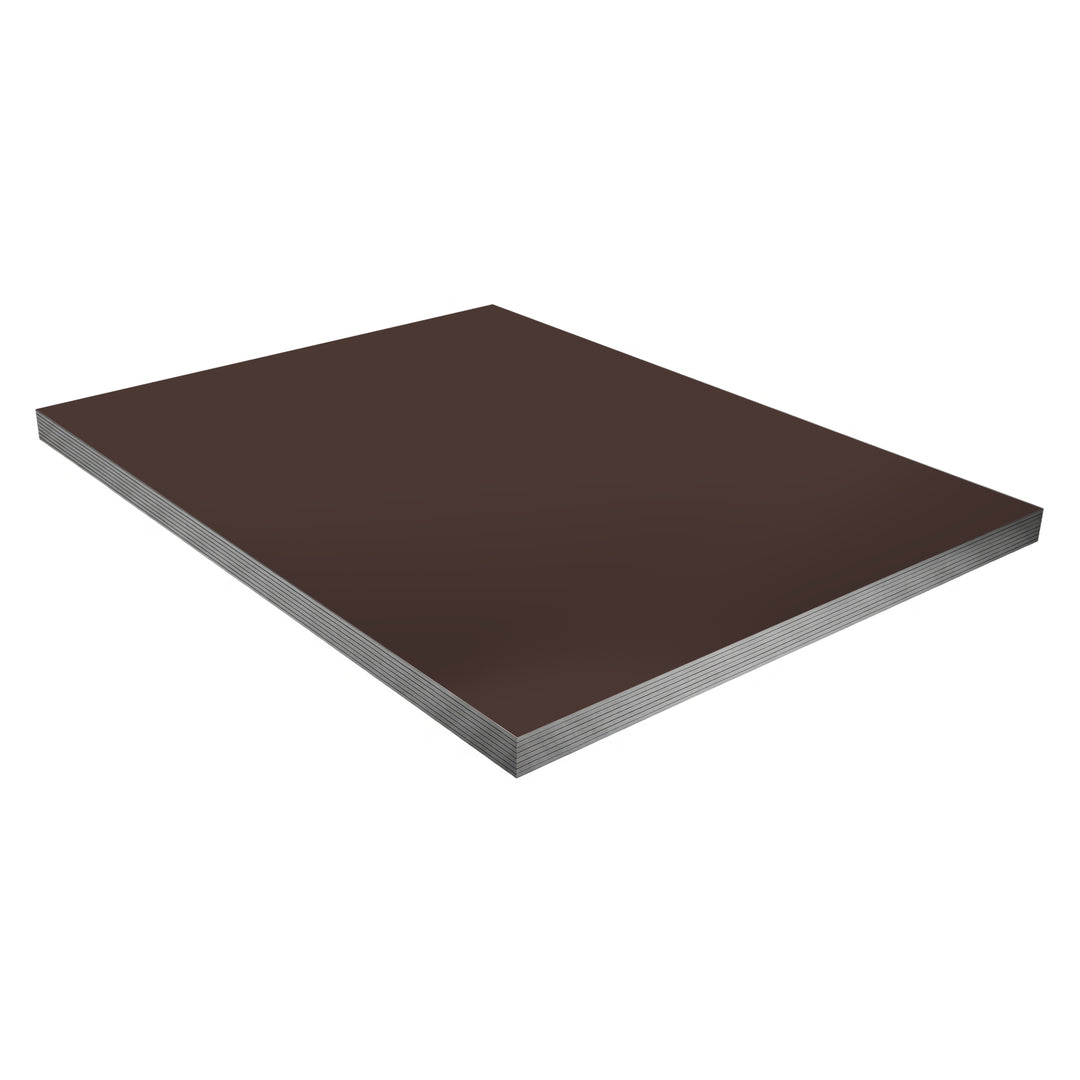

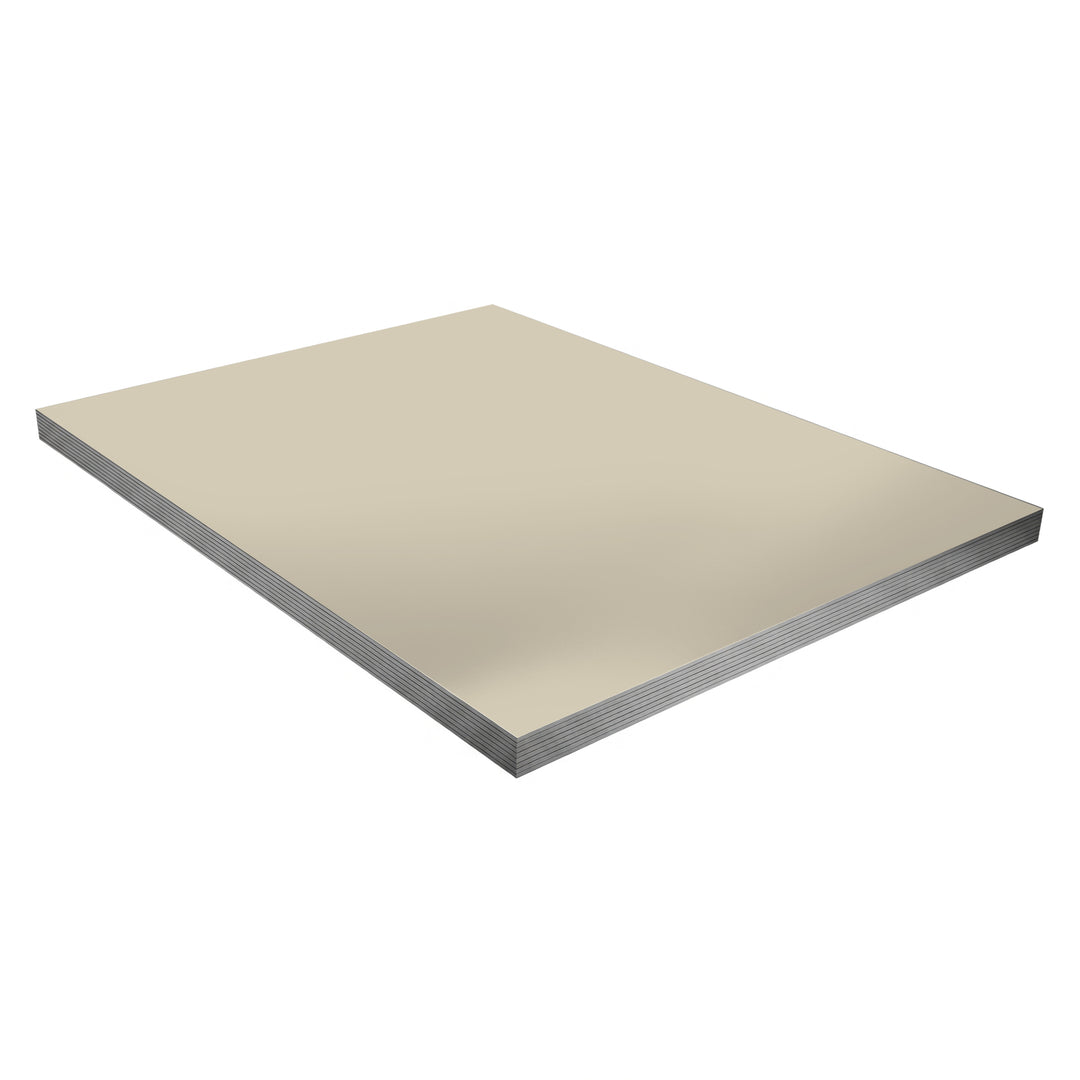

Painted Steel | Flat Sheet (48"x 120") | 24 gauge
Schafer Metal's Painted Steel is a commercial grade 24ga galvalume steel sheet that is primed and coated with Sherwin-Williams Fluropon® (PVDF) paint. This paint system provides best-in-class performance for metal wall and roof panel systems. Even after decades of abuse by the sun and weather, your design will continue to look new and show vivid colors. Our coating meets or exceeds American Society of Testing and Materials (ASTM) performance criteria for maintaining color and durability. Fluropon® coated systems have been out in the wild for 50 years - they are field-tested and time-proven.

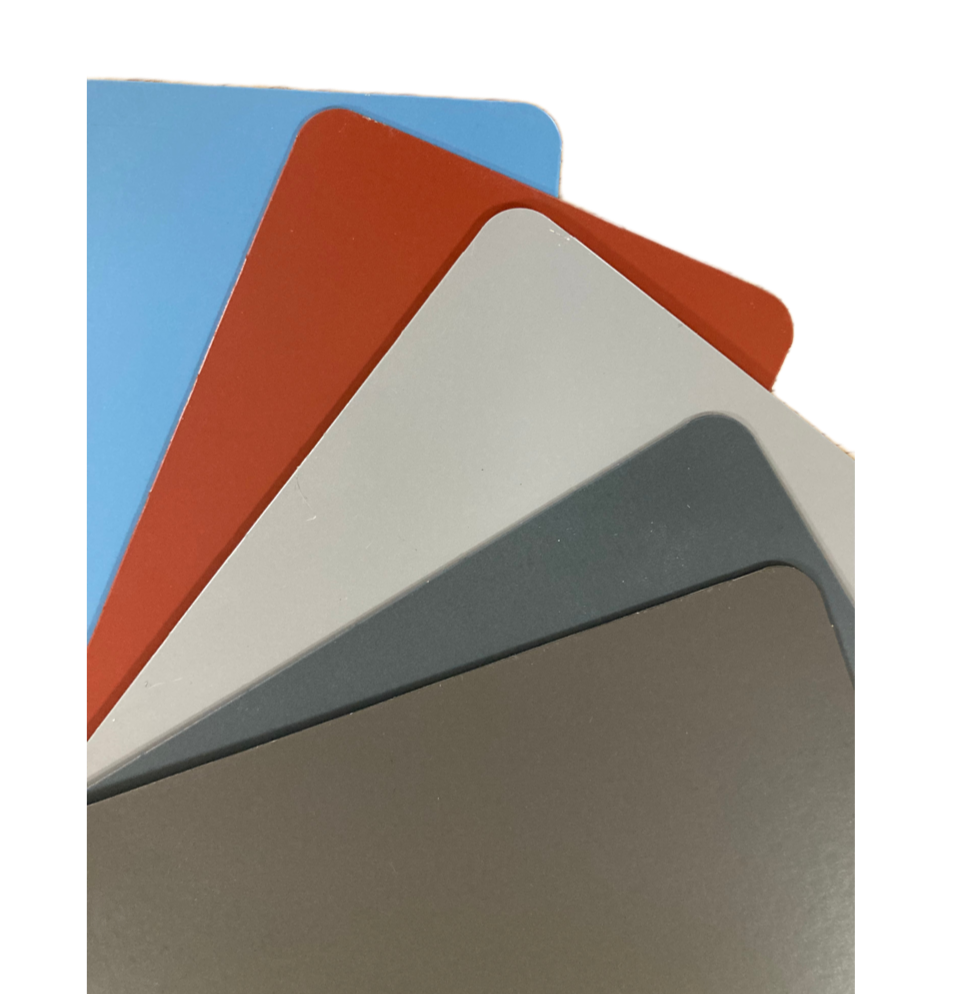

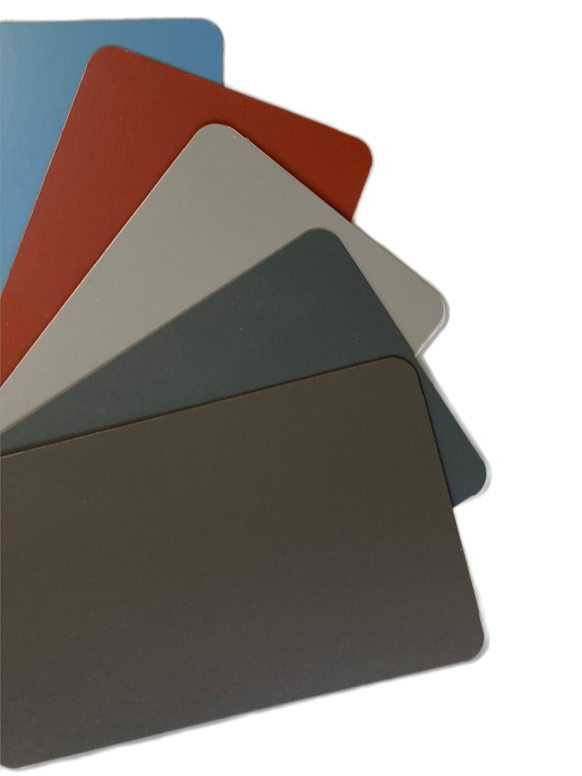

Sherwin-Williams and Schafer Metals worked closely together to create a color palette that allows customers to easily match popular colors of existing systems while also providing fresh, modern colors. Schafer Metals Painted Steel is durable, easy to work with, consistent, and guaranteed to deliver lasting beauty.
- Exceptional long-lasting durability
- Outstanding color consistency
- Excellent overall adhesion
- Superior flexibility and formability
- Unsurpassed resistance to the damaging UV rays of the sun
- Exceptional durability for exterior metal building products
Basic Uses:
Schafer Metal coated steel is designed for architectural use in building applications, including the following:
- Roofing Panels
- Wall Panels
- Fascia and Soffit Panels
- Gravel Stops and Copings
- General Flashing & Trim
Warranty:
- Schafer Metal galvalume products have a 50 year limited warranty against rupture, structural failure or perforation as a result of corrosion caused by exposure to normal atmospheric conditions
- Schafer Metal painted steel products have a 35 year limited paint warranty against chalking, fading, cracking, or peeling.
We also sell 24 Gauge 20" Coils and 26 Gauge 41"x120" Flat Sheet with matching color schemes. For larger orders, we can slit 24ga and 26ga coils in widths of 11 7/8", 16", and 24" in any Schafer Metals color.
Only available for in-store pick-up currently. If you need flat sheet and/or coil shipped elsewhere please reach out to a Schafer sales rep at 303-733-2303 for a quote and more information.
Schafer Metal's 24ga painted steel is a pre-finished specification grade commercial quality extra-smooth hot-dipped galvalume steel sheet, primed and coated with Sherwin-Williams Fluropon® (PVDF) high-performance coating system of 0.9 to 1.1 mil (0.025 mm) total dry film thickness and, on the reverse side, a backing coat of 0.3 -0.4 mil dry film thickness.
It consists of ASTM A792 Galvalume steel with a minimum .023” thickness to comply with 24ga AISI standards. Schafer Metal sheets, coil, and panels are coated with a 2-coat system using a combination of 70% Kynar 500®/ Hylar 5000® polyvinylidene fluoride (PVDF), acrylic resins, pigments, and solvents. The system consists of a Sherwin-Williams Fluropon® topcoat applied over a polyester primer. A backing coat is also applied to the reverse side, over a polyester primer, for additional protection.

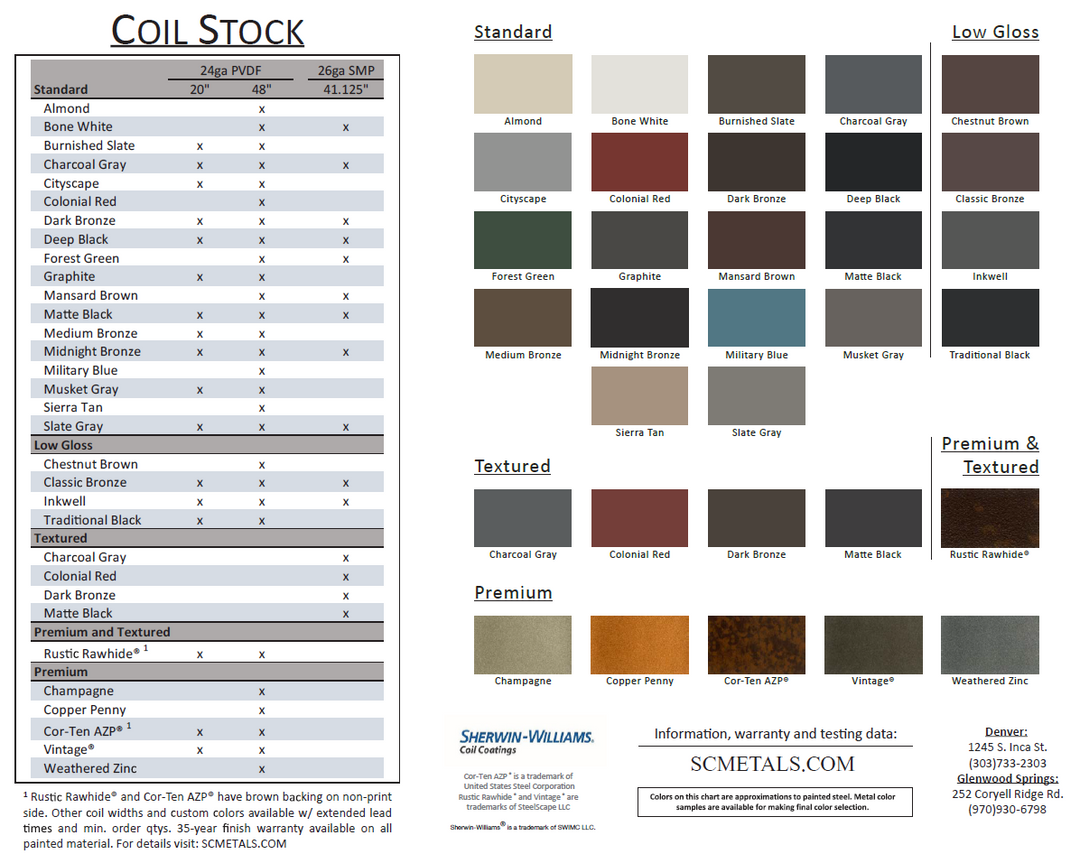

Sherwin-Williams Color CodesLet the Sherwin-Williams sales associate know the color is stored in Sher-Color’s Competitive Color Palette database.
|
Click Here for Available Panel Profiles

More coming soon. Call 303-733-2303 for our full selection of profiles, edge, custom bends, etc.
