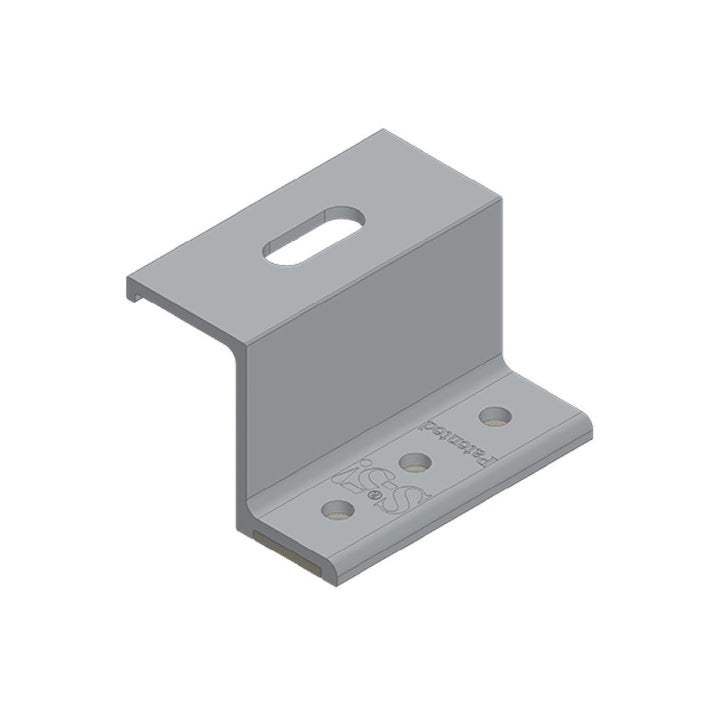

S-5! VersaBracket

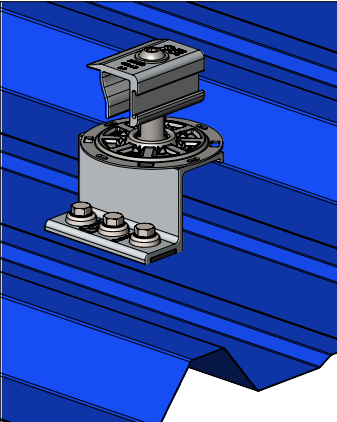

VersaBracket can be used to mount almost anything to an exposed-fastened roof system and is compatible with almost any trapezoidal exposed-fastened profile. No messy sealants to apply and no chance for leaks! The VersaBracket comes with factory-applied butyl sealant already in the base. S-5!'s patented reservoir conceals the sealant from UV exposure - preventing drying and cracks!

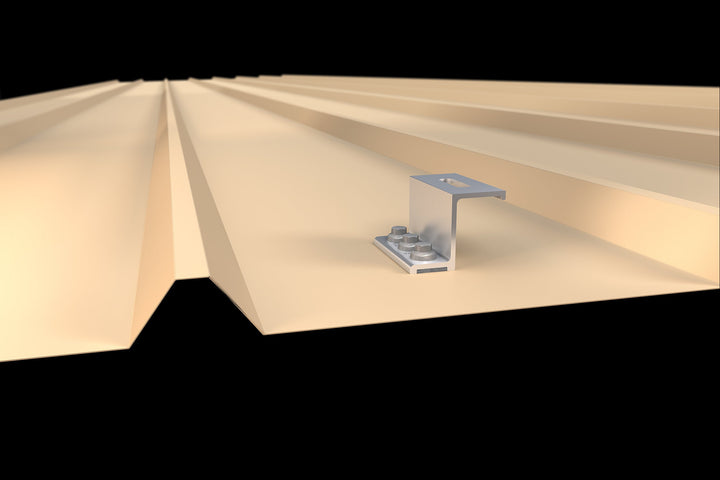

Installation is simple! VersaBracket is mounted in the flat of the panel, directly into the supporting structure of the roof, i.e. wood decking, wood or steel purlins, or trusses. No surface preparation is necessary; simply wipe away excess oil and debris, peel the release paper from the base, align, and apply. Secure through the pre-punched holes using the appropriate screws for the supporting structure.
VersaBracket is so strong, it will even support heavy-duty applications like snow retention. For exposed-fastened trapezoidal profiles, the VersaBracket is the perfect match for S-5's ColorGard snow retention systems (for corrugated roofs use CorruBracket). VersaBracket is extremely economical and facilitates quick and easy installation.
*Screws, Bolts, and Nuts are not included - links to purchase each below*
SUPPORTING MATERIAL
-
Product Sheet
- Installation Guide

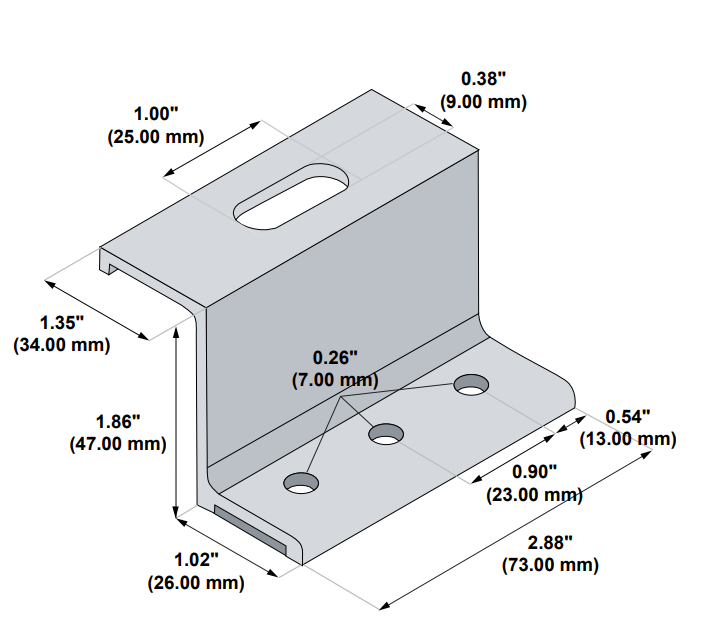

- Diagram (47)

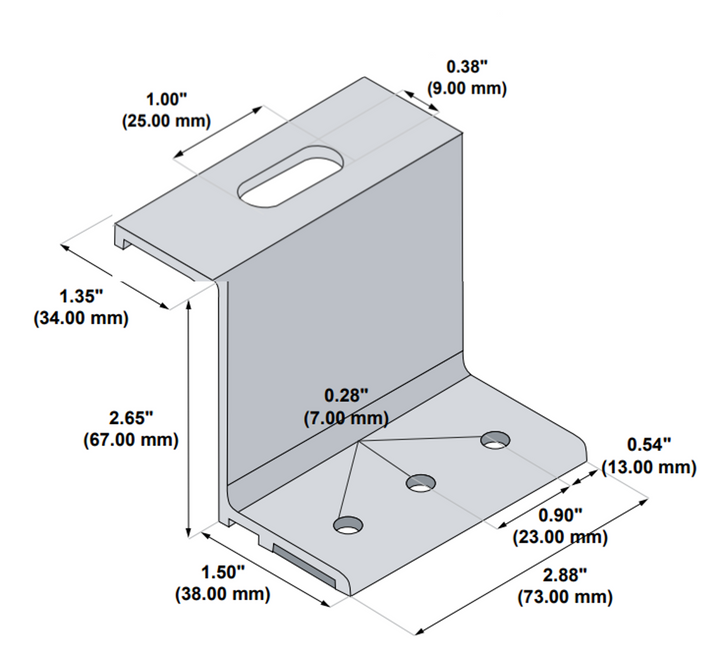

- Diagram (67)
