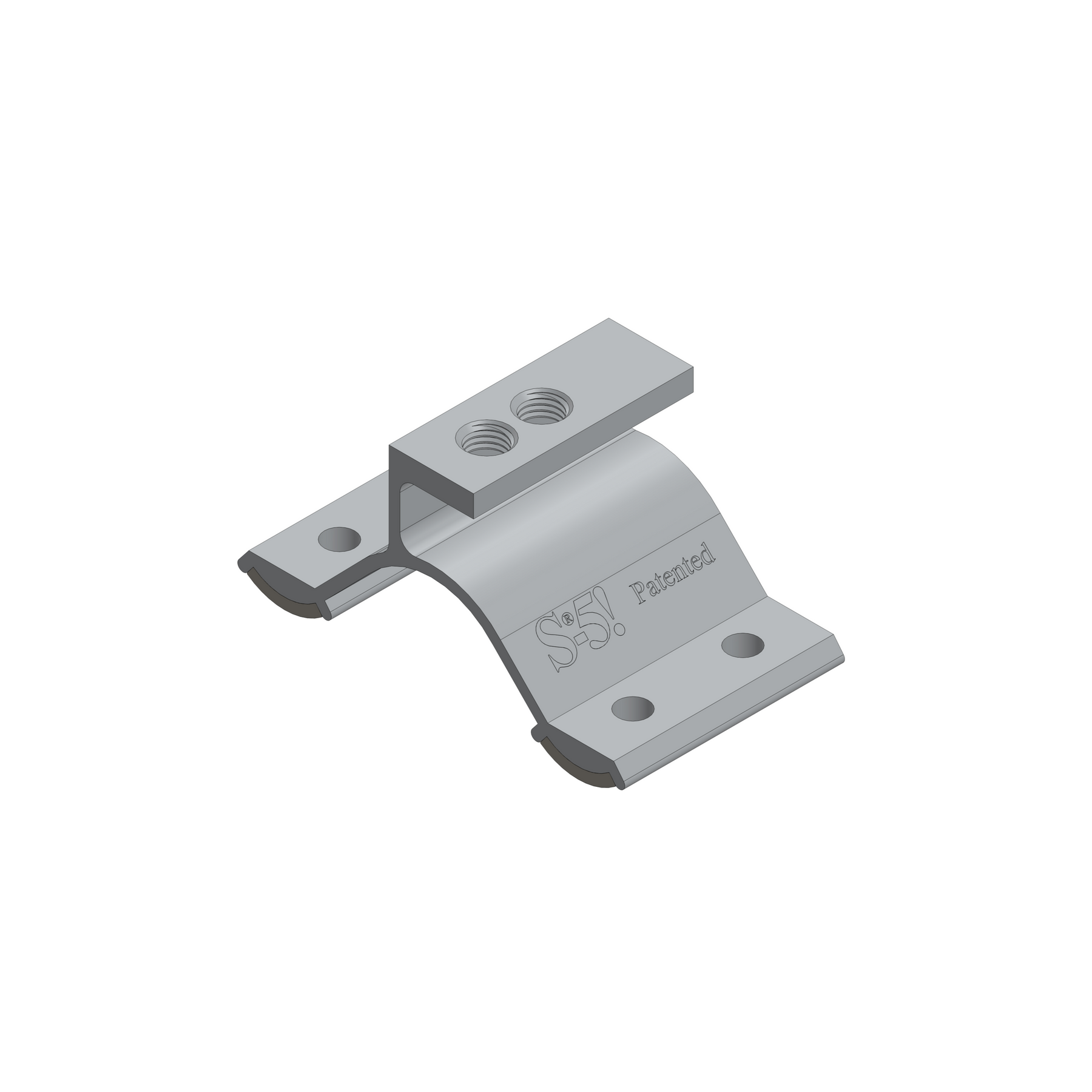

CorruBracket is ideal for mounting snow guards and other heavy-duty applications to corrugated roofing. Compatible with the PVKIT® for direct-attach™ solar PV mounting when there is an underlying wood deck. This metal roof bracket can also be used with railed mounting.
Fastened through the roof panel and into the structure, CorruBracket utilizes two to four fasteners specifically designed to outlive the roof.
With no messy, field-applied sealants, there’s no chance for leaks. CorruBracket comes with factory-applied, butyl sealant already in the base. The part design conceals the sealant, preventing UV degradation and over-compression of the sealant when fasteners are secured.
CorruBracket has been rigorously tested normal-to-seam (pull-up) and parallel-to-seam (drag load) for load-to-failure results on wood decking, metal, and wood purlins.
Due to the various mounting applications, CorruBracket screws and bolts are offered separately.
Note: CorruBracket must be mounted directly over and into the supporting structure of the roof, (i.e. wood decking, wood or steel purlins or trusses) – NEVER into the metal roofing material alone.
CorruBracket fastens in the low (or between the ribs), through the deck into the structure and accommodates a rib pitch of +/- 2.67” (68 mm).
SUPPORTING MATERIAL
Guide to selecting the correct S-5! Clamp for your roof profile.
